The 4M Framework — Man, Machine, Material, Method — is primarily an operations and process management tool that is commonly used in lean manufacturing and quality management.
It is a root cause analysis tool used during DMAIC (Define-Measure-Analyze-Improve-Control) projects to identify, categorize, and address the sources of defects, inefficiencies, quality issues.
MAN – Manpower is the most important factor responsible for handling the other Ms- Material, Machines and Money. Qualified and motivated manpower, and regular training ensures the growth and productivity of the organisation.
Analysis: Is the operator trained properly? Was there lack of clear instructions? Fatigue or ergonomic issues?
MATERIALS – Materials are vital for manufacturing companies. Without materials, an organisation cannot create any output, and without output the business cannot function.
Analysis: Were the Material specs not met? Were the materials not stored adequately? Variations in supplier batches?
MACHINE – Machines, tools/technology are required to produce products and services at the desired quality and rate.
Analysis: Preventive maintenance overdue? Tool wear or calibration drift? Machine capability insufficient?
METHOD – Method refers to the standard work methods and processes to ensure, efficient, consistent and safe production.
Analysis: Is the process documented and followed? Are inspection methods inadequate?

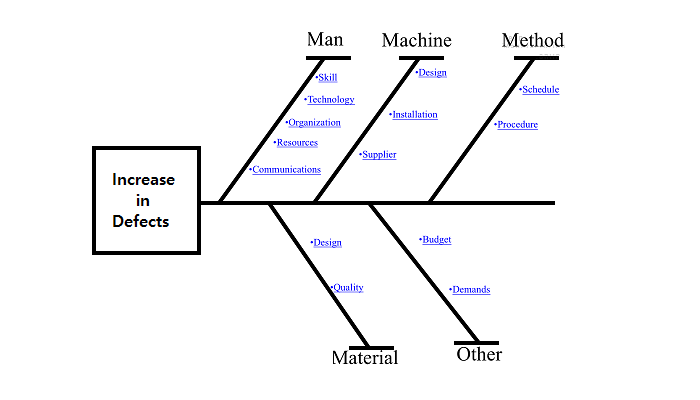

The 4M is typically applied through a Fishbone (Ishikawa) Diagram.
Example: Analyzing Defects in a Machined Part. Let’s say the tool used is creating more Oversized Holes than what is acceptable.
Problem: 15% of drilled parts are out-of-tolerance (oversized holes).
Fishbone branches might reveal:
- Man: Operator is trained; no fatigue from overtime.
- Machine: Drill bit worn; machine spindle runout due to poor maintenance.
- Material: Raw material hardness is almost consistent between supplier lots.
- Method: Drilling speed rate not updated in SOP after material change.
Root causes confirmed: Worn bits (Machine) + outdated SOP (Method).
Solutions: Implement maintenance of tools, update SOP and retrain operators.
Result: Defects drop to
Variations of this framework sometimes expand to 5M/6M (adding Measurement, Mother Nature/Environment, or Management).
